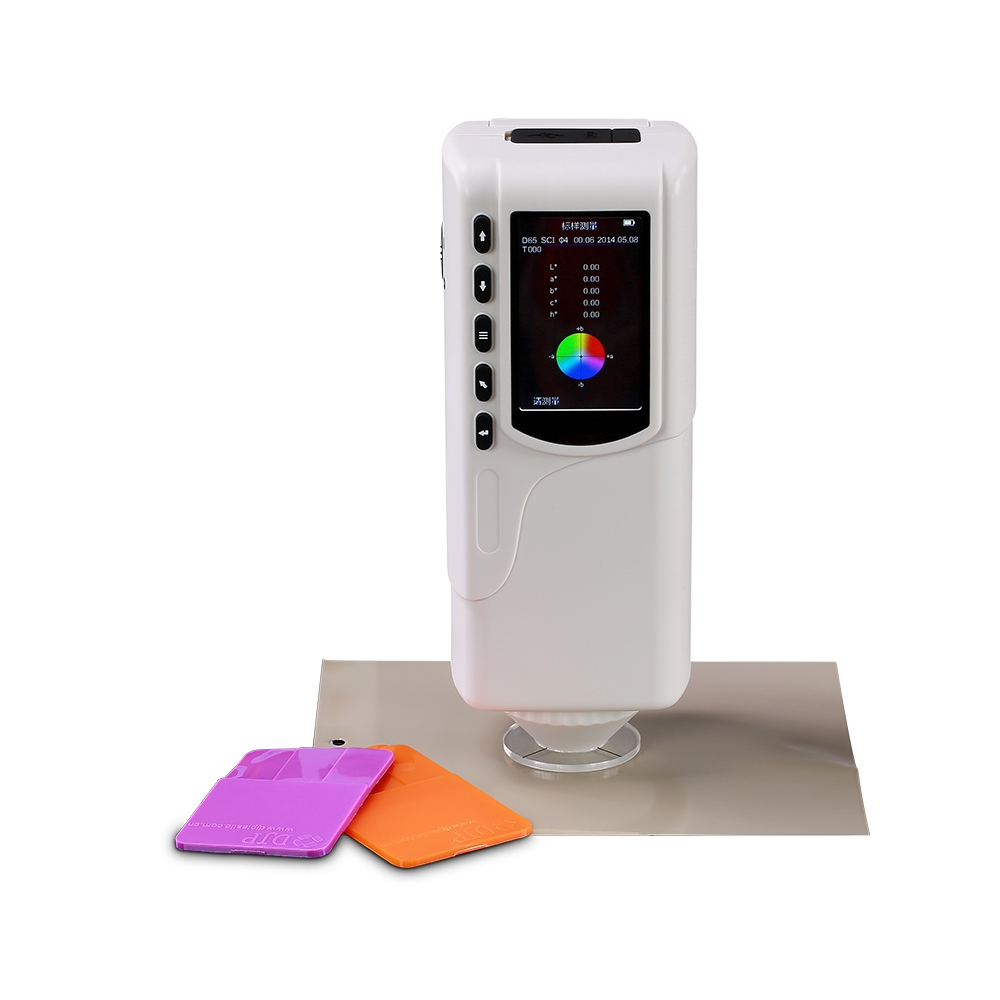

Digital Portable Colorimeter

Digital Portable Colorimeter

NR0100
Hurry! only 20 items left in stock.
€370.00
VAT included
Quantity

Add to Wishlist

The NR100 is a high-precision, low-cost portable colorimeter.

This new model features two apertures: 8mm flat aperture and Φ4mm tip aperture, suitable for most samples.

With the CIE LAB color space, the NR100 is useful for checking color difference for delta E and is widely used in plastics, electronics, paint, ink, textiles, clothing, printing and dyeing, food,  cosmetics, industries, scientific research institutions, schools, and laboratories.

SPECIFICATIONS:

• Geometry lighting / visualization: 8/d (8° illumination angle / diffuse viewing); Complies with CIE No.15, GB/T 3978.

• Lighting:  White LED light

• Detector: Silicon photoelectric diode

• Measuring aperture: Flat opening Φ8mm; Tip opening Φ4mm

• Color space: CIE LAB

• Color difference formula: ΔE * ab

• Observer's angle: CIE 10 °

• Light source: D65

• Displayed data: Chromaticity values, color difference values/graph, PASS/FAIL result, color offset

• Measurement time: 1.0s

• Repeatability: Standard deviation within ΔE * ab 0.03 (average of 30 standard white plate measurements)

• Errors between each device: Within ΔE * ab 0.4

• Size: 205 × 67 × 80 mm

• Weight:  500g

• Source of power: Rechargeable lithium-ion battery 3.7V @ 3200mAh

• Display: 2.8 inch TFT

• Interface: USB

• Data memory: 100 standard pieces 10000 sample pieces

• Operating environment:  0~40℃ (32~104°F)

• Storage environment:  -20~50℃ (-4~122°F)

• Standard accessory: Power adapter, user guide, wristbands, Φ8mm flat opening; Φ4mm tip opening.
